D-2 Low-Profile Carton Flow

Low-Profile Carton Flow Track

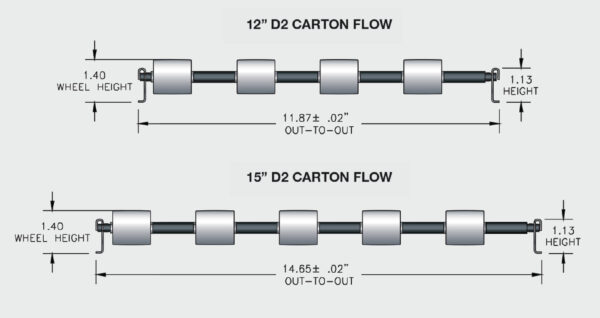

D-2 Carton Flow Roller DimensionsTrack widths will accommodate existing carton flow shelves of all sizes, leaving minimal gaps, and maximizing wheel coverage.  Installation is simple and easy with pre-installed end brackets with adaptability.

Track height resembles overall profile of traditional carton flow tracks, eliminating the need for a package stop at the exit end of the system. Mounts low into the shelf, using the beam as a stop.

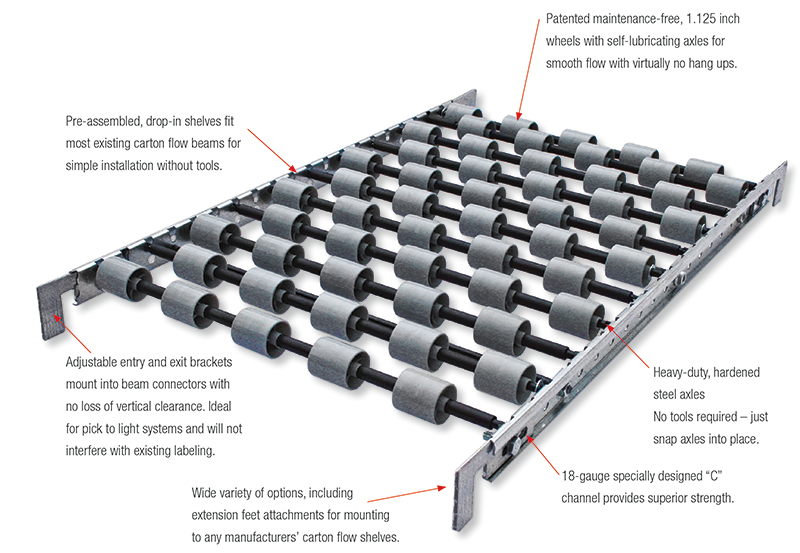

Installation is simple and easy with pre-installed end brackets with adaptability.  Rollers are available in 12″ and 15″ wide and have an overall height of 1.40″.

Axle Center Minimum Carton Depth
2 inch center 6 inch deep carton
3 inch center 9 inch deep carton
4inch center 12 inch deep carton

.

Carton Specifics:

Cartons are subject to weight and length limits.

Not suitable for cartons with raised lip outer edge.

D2 Carton Flow System Capacities (lbs. per/sq. ft.):

Load capacity is determined by the capacity of the shelf.  Carton flow shelves offering support at a minimum of 24″ centers will have in excess of 50 lbs. per square foot capacity.  Axles and wheels are rated at a higher capacity than side channels.  D2’s design will hold up to heavy picking operations and eliminate the need for constant maintenance.
